Our Products

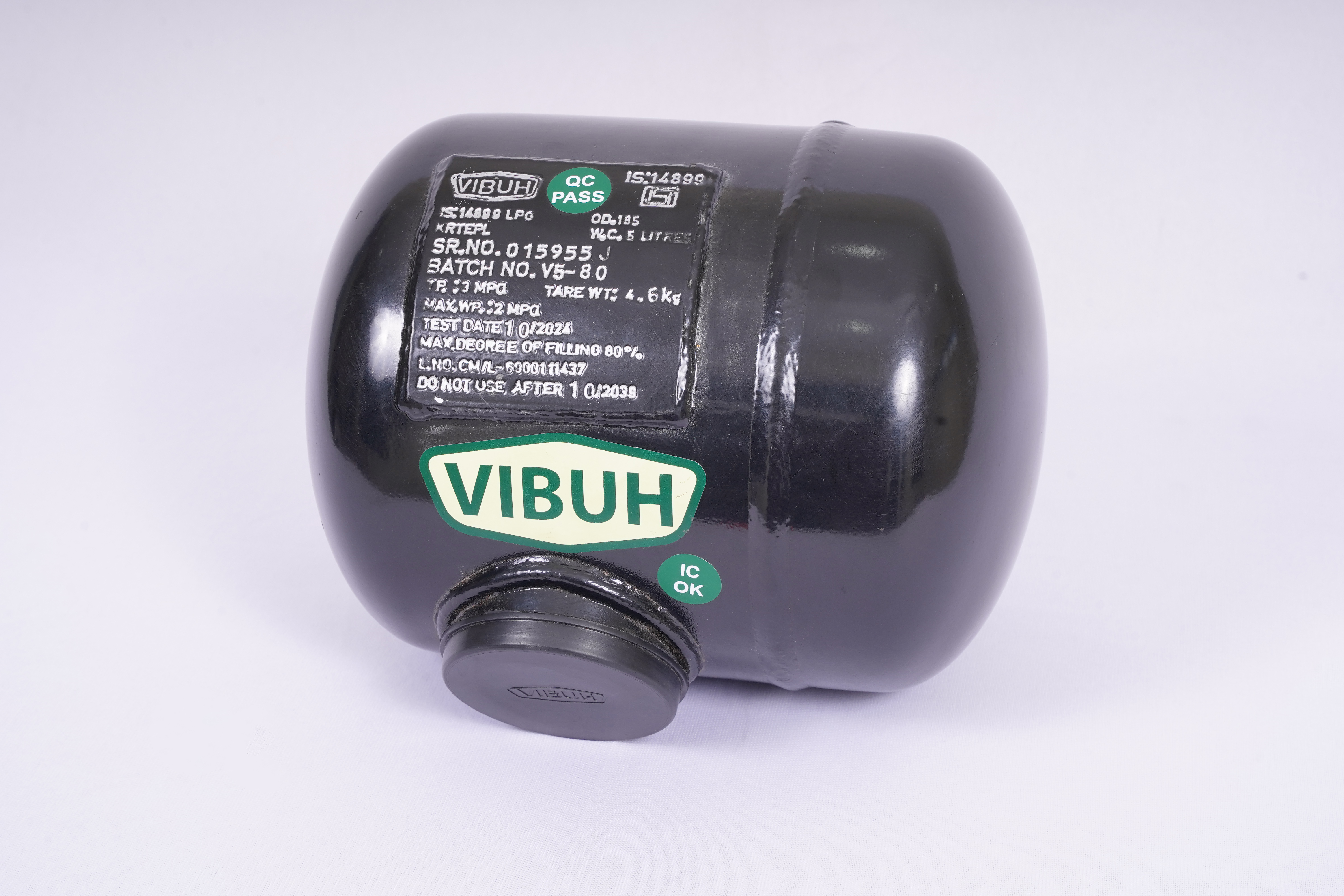

5L Cylindrical Tank

• Water Capacity: 5L
• Tare Weight: 4.5 Kg
• Outer Diameter: 185 mm
• Length: 244 mm
• Working Pressure: 2 MPa
• Temperature: -20 to +65°C
• Approval: IS 14899

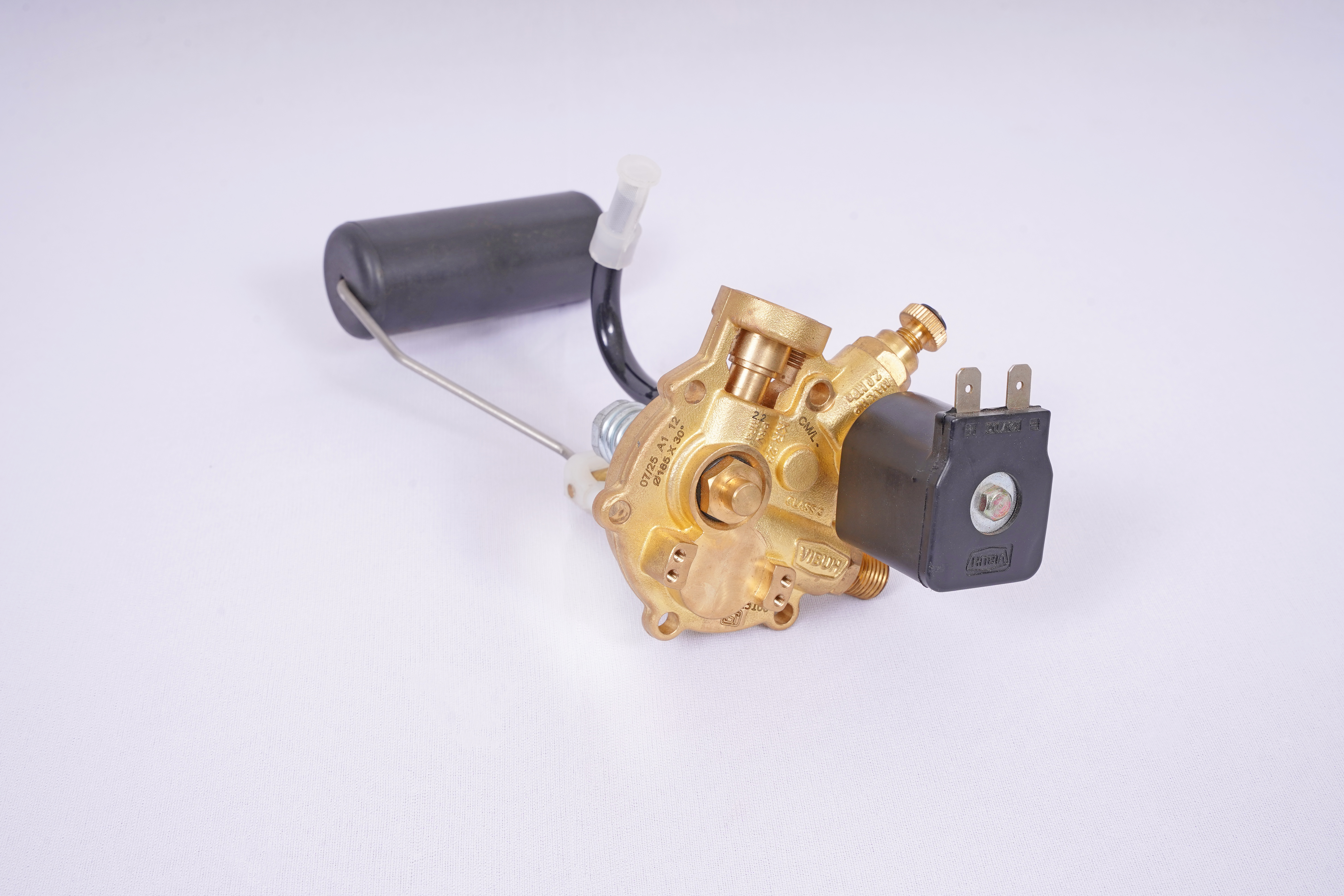

Multifunction Valve

• Model No: KR 23
• Max. Working Pressure: 2 Mpa
• Working Temp: (-20C 65C)
• Weight: 0.75Kg
• Standard: IS 15100
• Approval: BIS & PESO

Filler Valve

• Model No: KR 45
• Max. Working Pressure: 2 Mpa
• Weight: 0.130Kg
• Standard: IS 15100
• Approval: BIS & PESO

Reducer (KR 56)

• Model No: KR 56
• Output Pressure: 1.2 bar
• Pressure Range: 1.0 - 1.4 bar
• Temperature Range: (-20C to +120C)
• Weight: 365 grams
• Approval: ECE R67

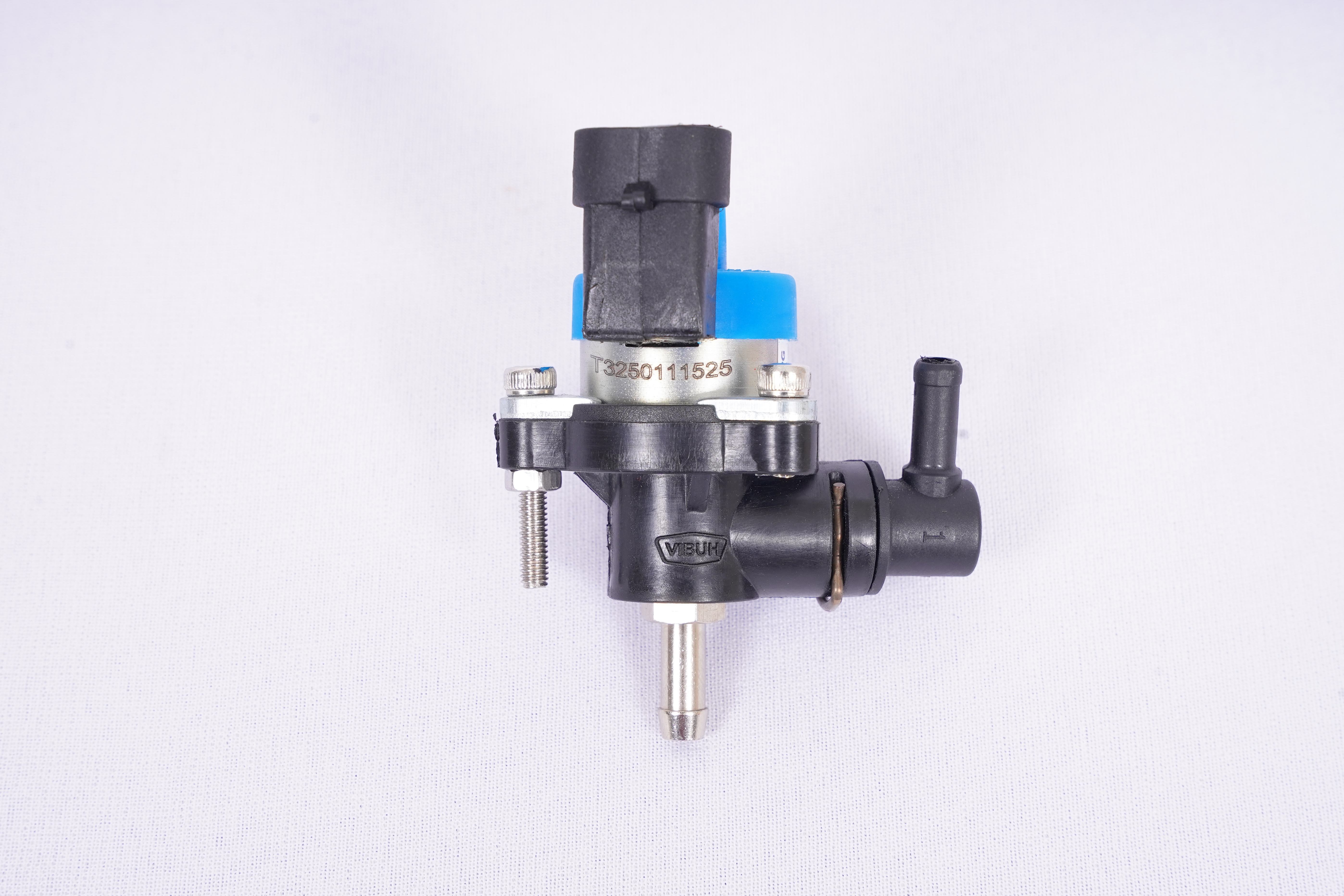

Injector

• Model No: KR 360
• Coil Resistance: 2.0 O 5%
• Opening Time: 1.9ms
• Closing Time: 1.25ms
• Max. Working Pressure: 4 Bar
• Operating Temp: -20C to +120C
• Operating Voltage Range: 8-16 V.DC
• Standard: ECE R67
• Approval: iCAT

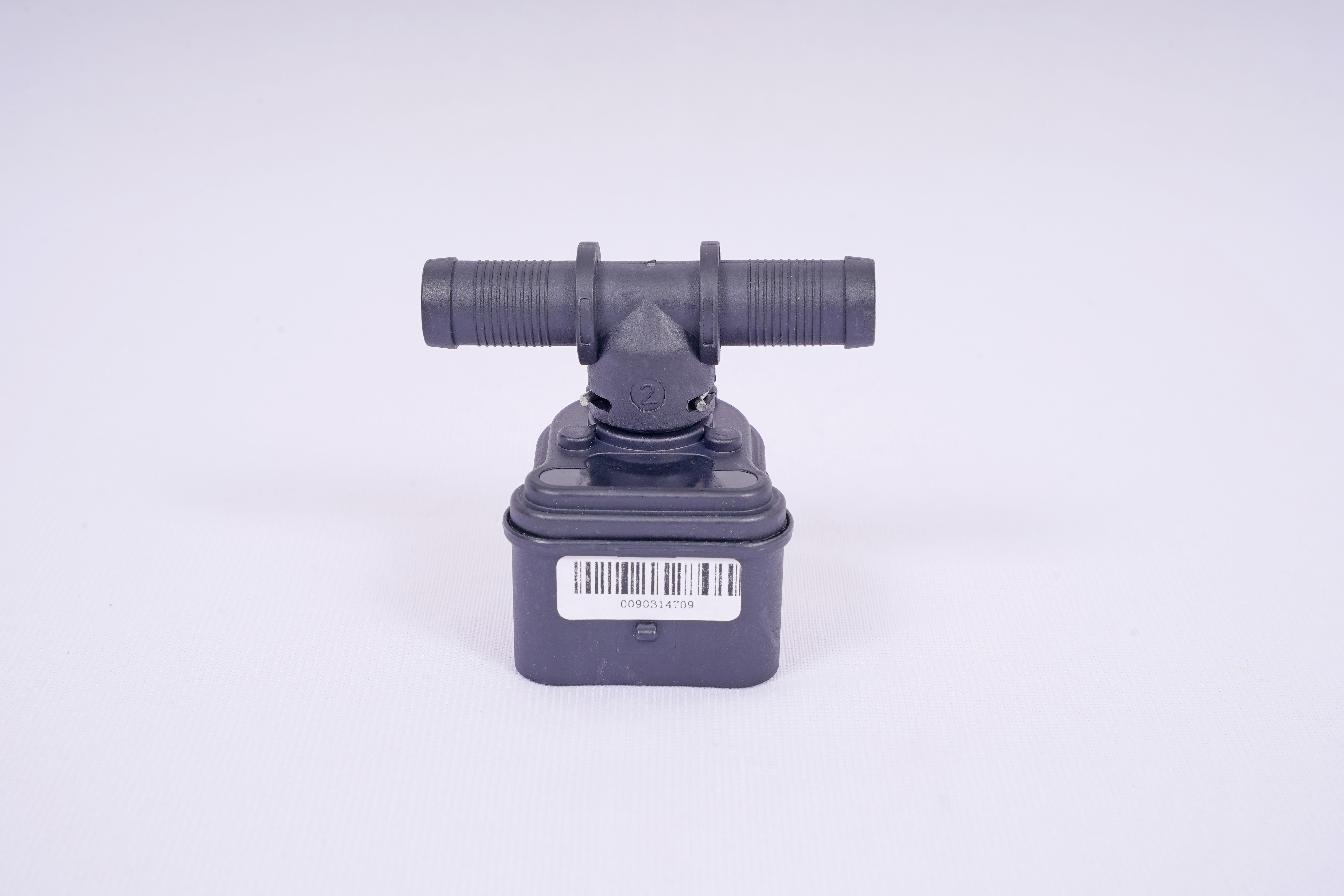

MAP Sensor

Critical input device for LPG ECU to provide important data for fuel mapping. Interfaces with LPG ECU for dual-fuel coordination. Robust, temperature-compensated sensor ensuring stable performance.

ECU (Electronic Control Unit)

• Its an integrated electronic component, which program the controlling of injector according to various data input.
• It controls both the electro magnetic valves.
• Controls the fuel level indication, mode selection and error display.

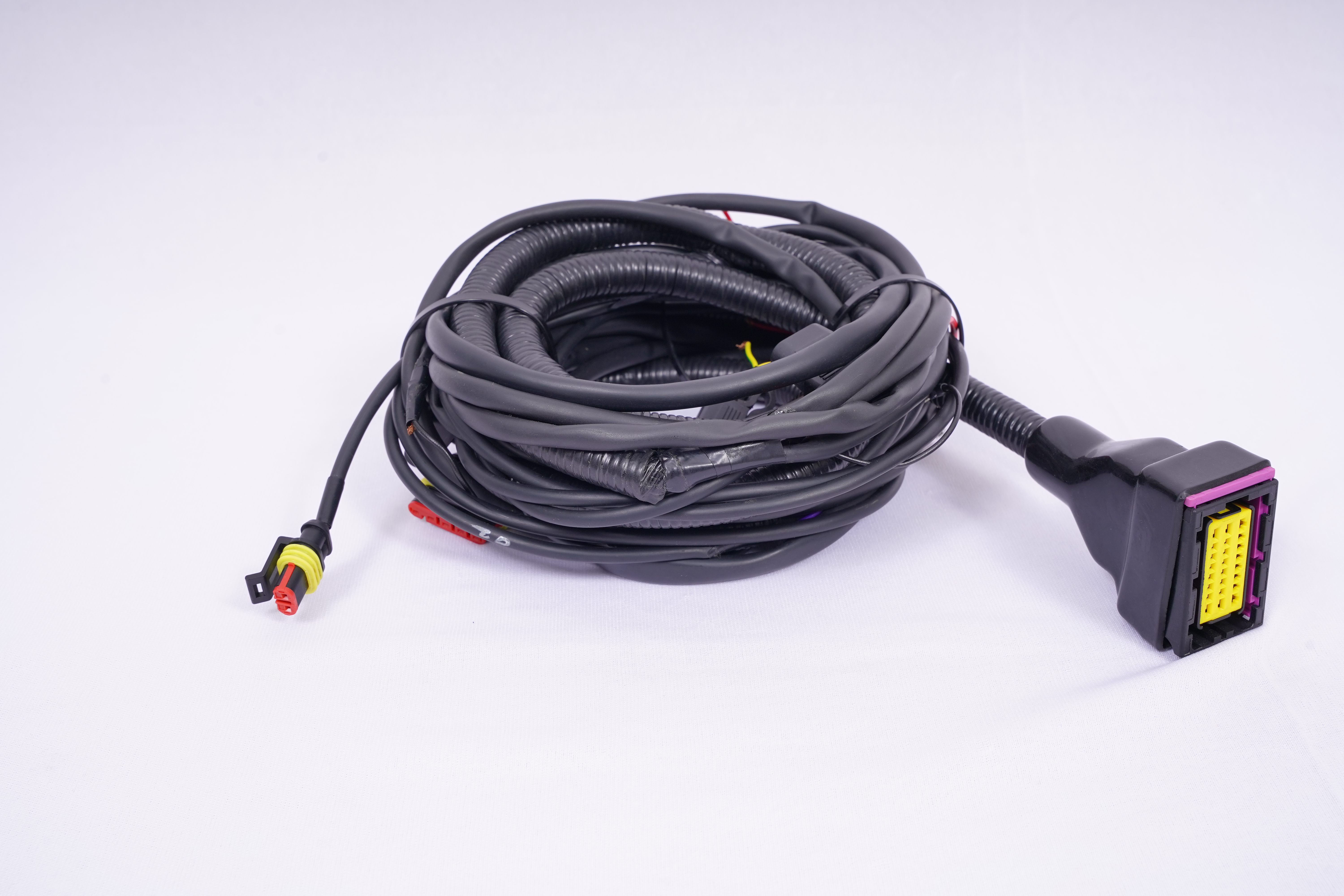

Wiring Harness

Multi-branch harness linking LPG ECU, injectors, sensors, and solenoid valves. Supports OBD interface, and onboard safety features. Heavy-duty, heat-resistant design with integrated fuses and relay protection.

Change Over Switch

• This is a two-way switch helps in selction of fuel mode (Petrol/LPG) according to the selection.
• It is inbuilt with OBD error indication and service indication as well.
• The unique feature of this unit is the transfer of fuel mode into petrol automatically when gas pressure goes down below the set threshold.
• It further helps in direct gas start mode (Emergency Start) in case of trouble in starting petrol.

Petrol Solenoid

An electromagnetic switch-controlled valve. Which opens or closes the fuel flow line (usually petrol). Controlled by the ECU or a manual switch depending on the system.

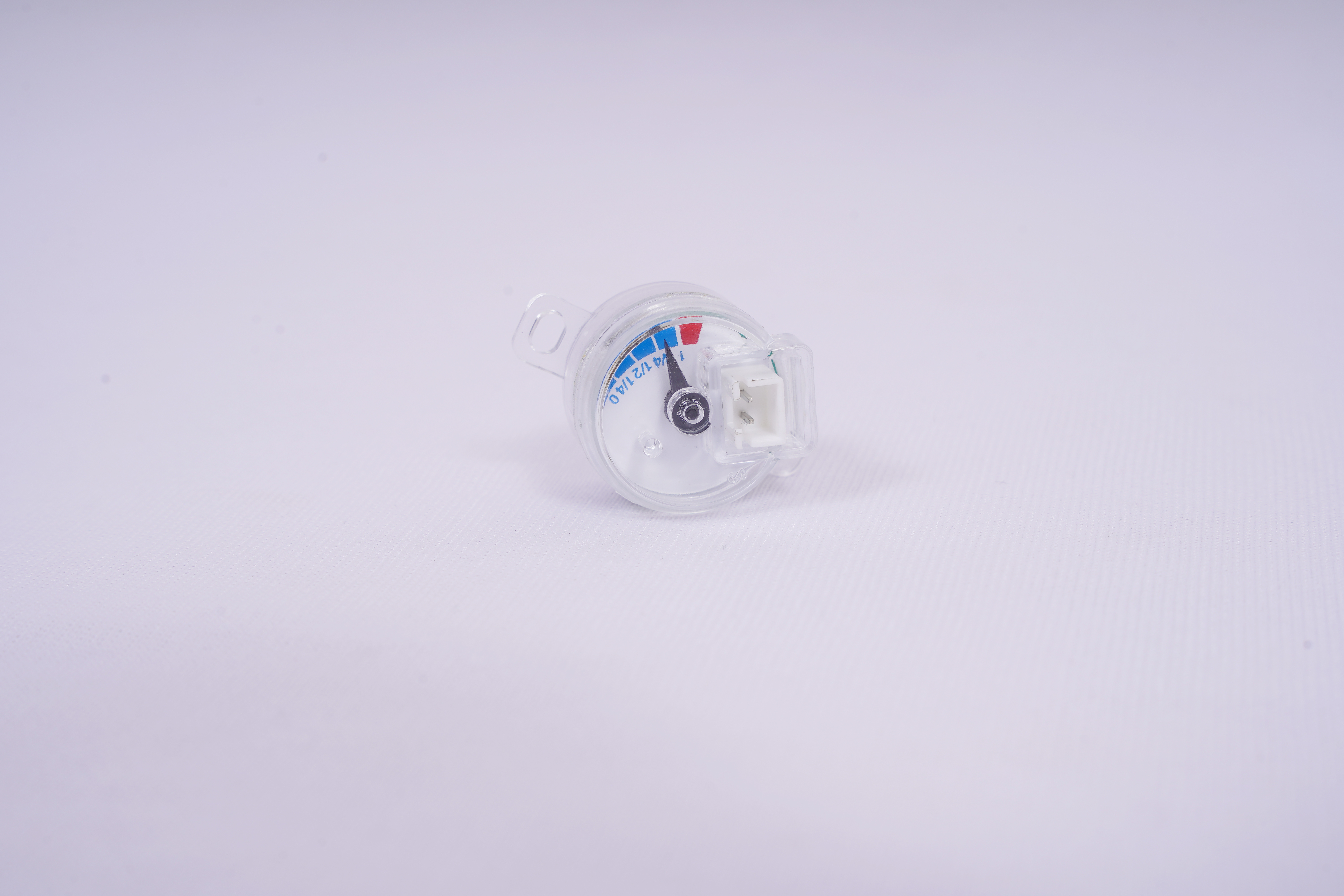

Level Sensor

level sensor mounted on Multifunction valve reads the liquid gas level on tank, by means of magnetic pick up and sends signal to ECU, and then to switch.
