Our Products

33L Toroidal Tank

A 33-liter capacity toroidal tank for safe LPG storage.

• Water Capacity - 33 Litre
• OD - 315 mm
• Tare Weight - 13.5 kg
• Length - 490 mm
• Max. Working Pressure - 2 Mpa.
• Temperature - (-20 C to +65 C)
• Specification - IS 14899.
• Approval - BIS & PESO.

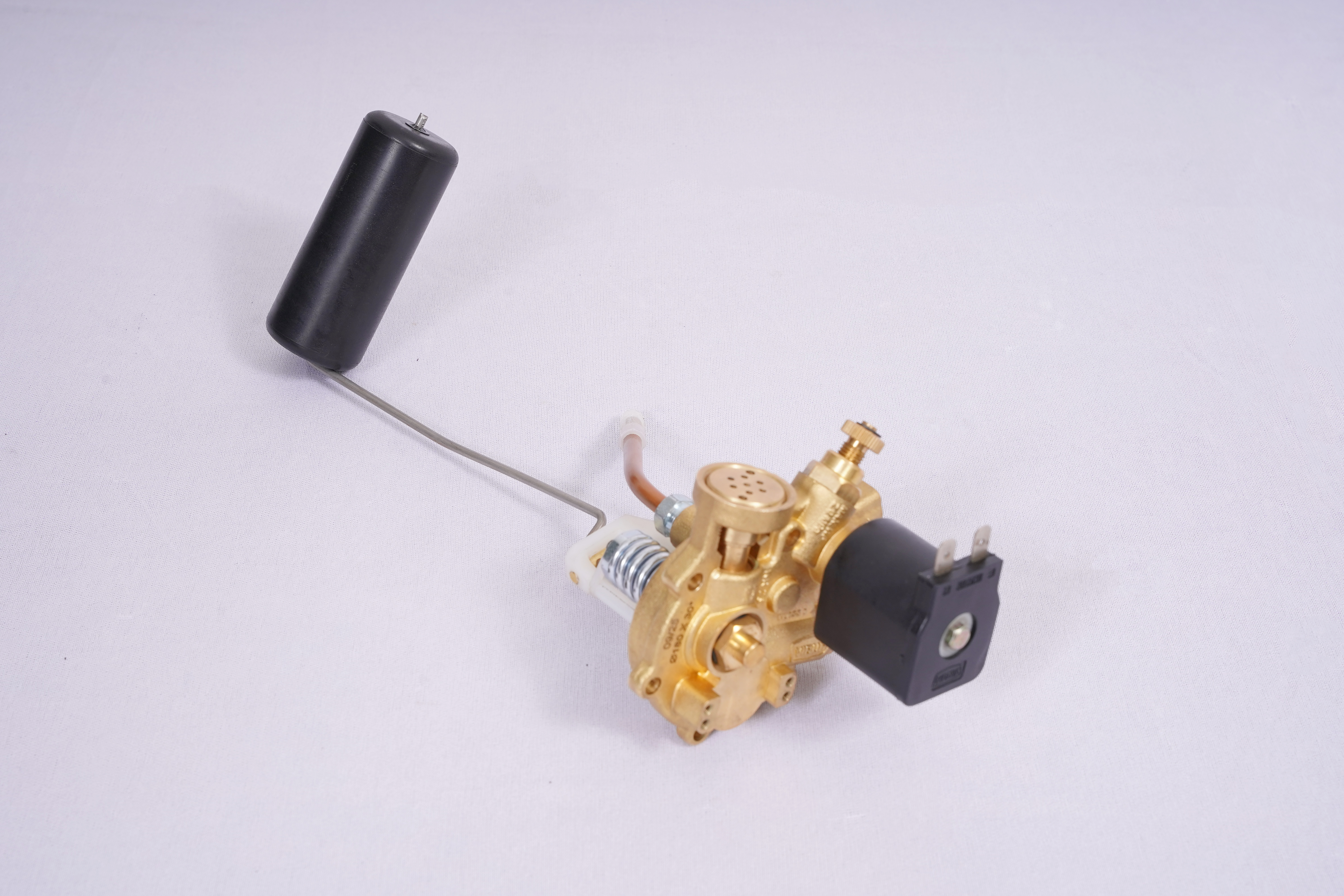

Multifunction Valve

• Model No: KR 23
• Max. Working Pressure: 2 Mpa
• Working Temp: (-20 65 C)
• Weight: 0.75Kg
• Standard: IS 15100
• Approval: BIS & PESO

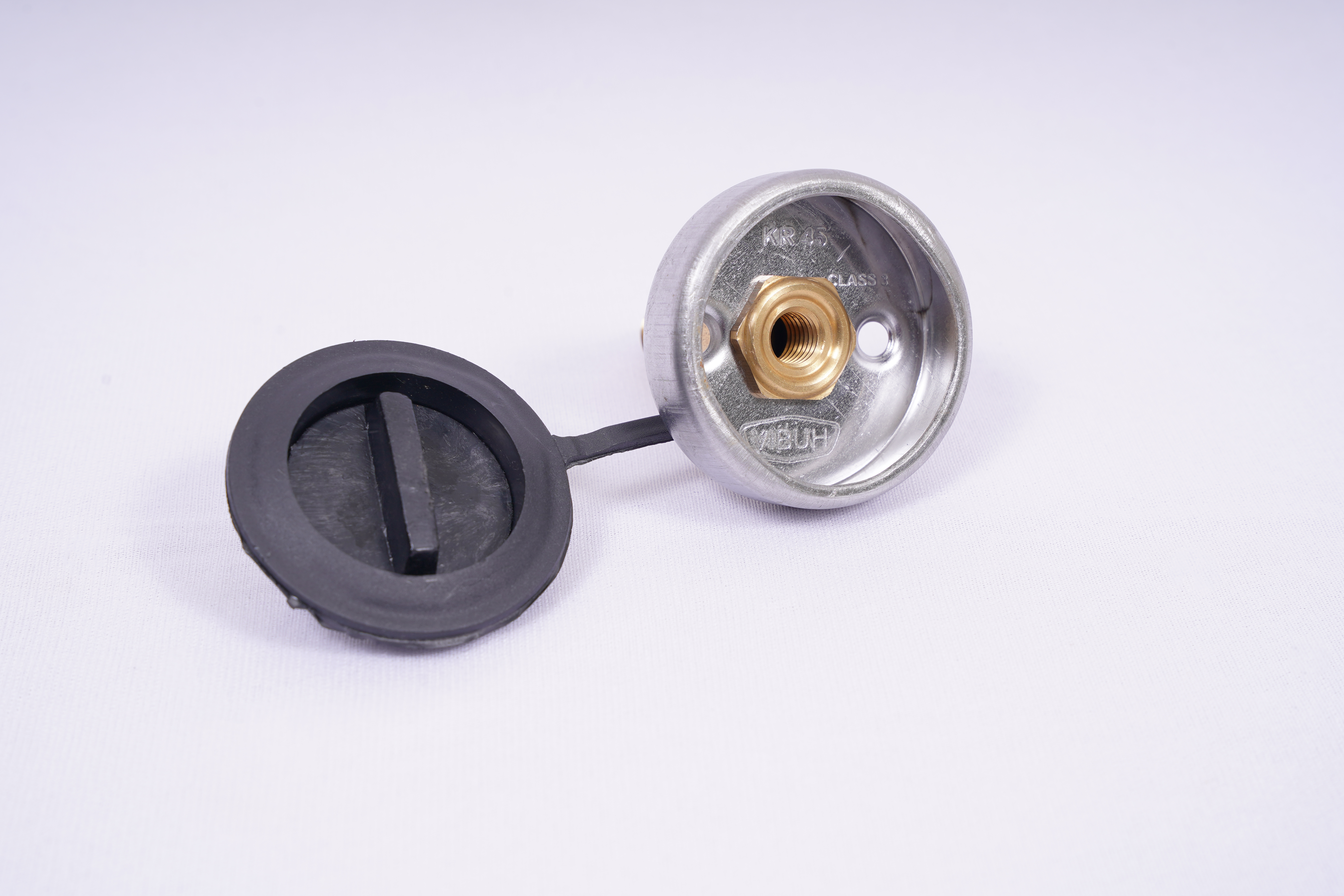

Filler Valve

• Model No: KR 45
• Max. Working Pressure: 2 Mpa
• Weight: 0.130Kg
• Standard: IS 15100
• Approval: BIS & PESO

Reducer (KR 56)

• Model No: KR 56
• Output Pressure: 1.2 bar
• Pressure Range: 1.0 - 1.4 bar
• Temperature Range: (-20 C to +120 C)
• Weight: 365 grams
• Approval: ECE R67

Rail Injector

• Model No: KR 360 Rail
• Coil Resistance: 2.0 O 5%
• Opening Time: 1.9ms
• Closing Time: 1.25ms
• Max. Working Pressure: 4 Bar
• Operating Temp: -20 120 C
• Operating Voltage Range: 8-16 V.DC
• Compliance: ECE R67/ISO 15500

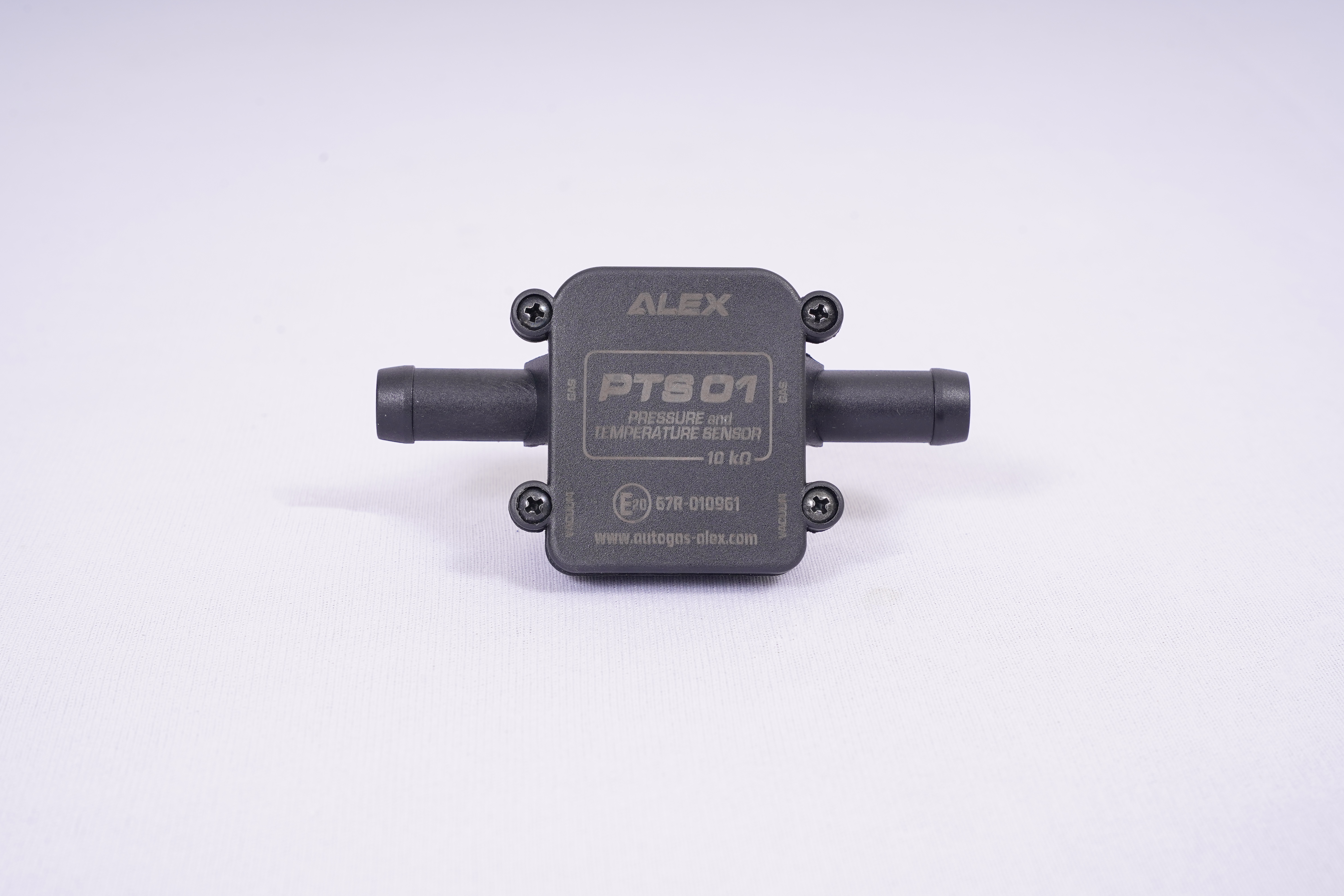

MAP Sensor

Critical input device for LPG ECU to provide important data for fuel mapping. Interfaces with LPG ECU for dual-fuel coordination. Robust, temperature-compensated sensor ensuring stable performance.

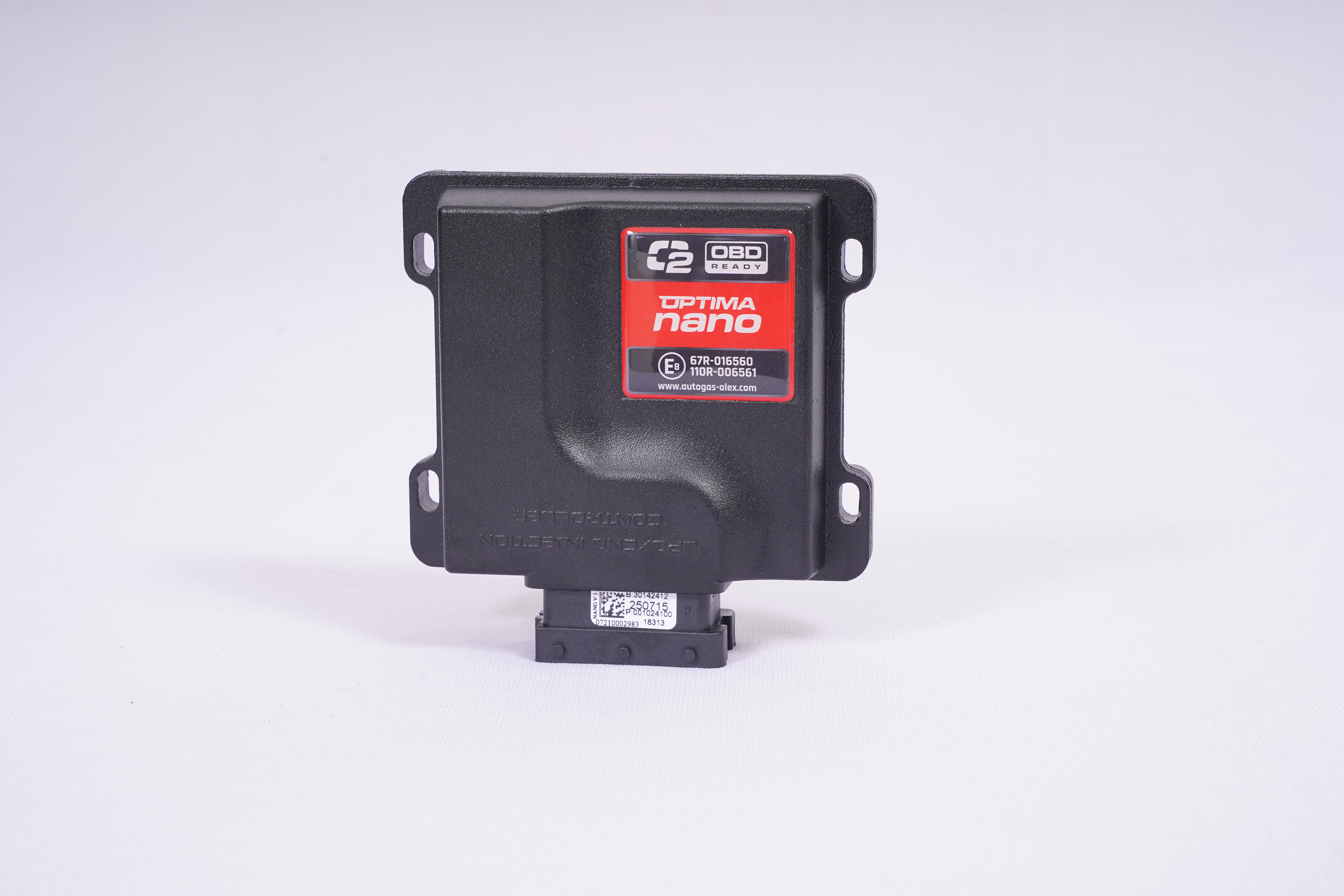

ECU (Electronic Control Unit)

• Its an integrated electronic component, which program the controlling of injector according to various data input.
• OBD functions and data logging are the additional features of this unit.
• It controls both the electro magnetic valves.
• Controls the fuel level indication, mode selection and error display.

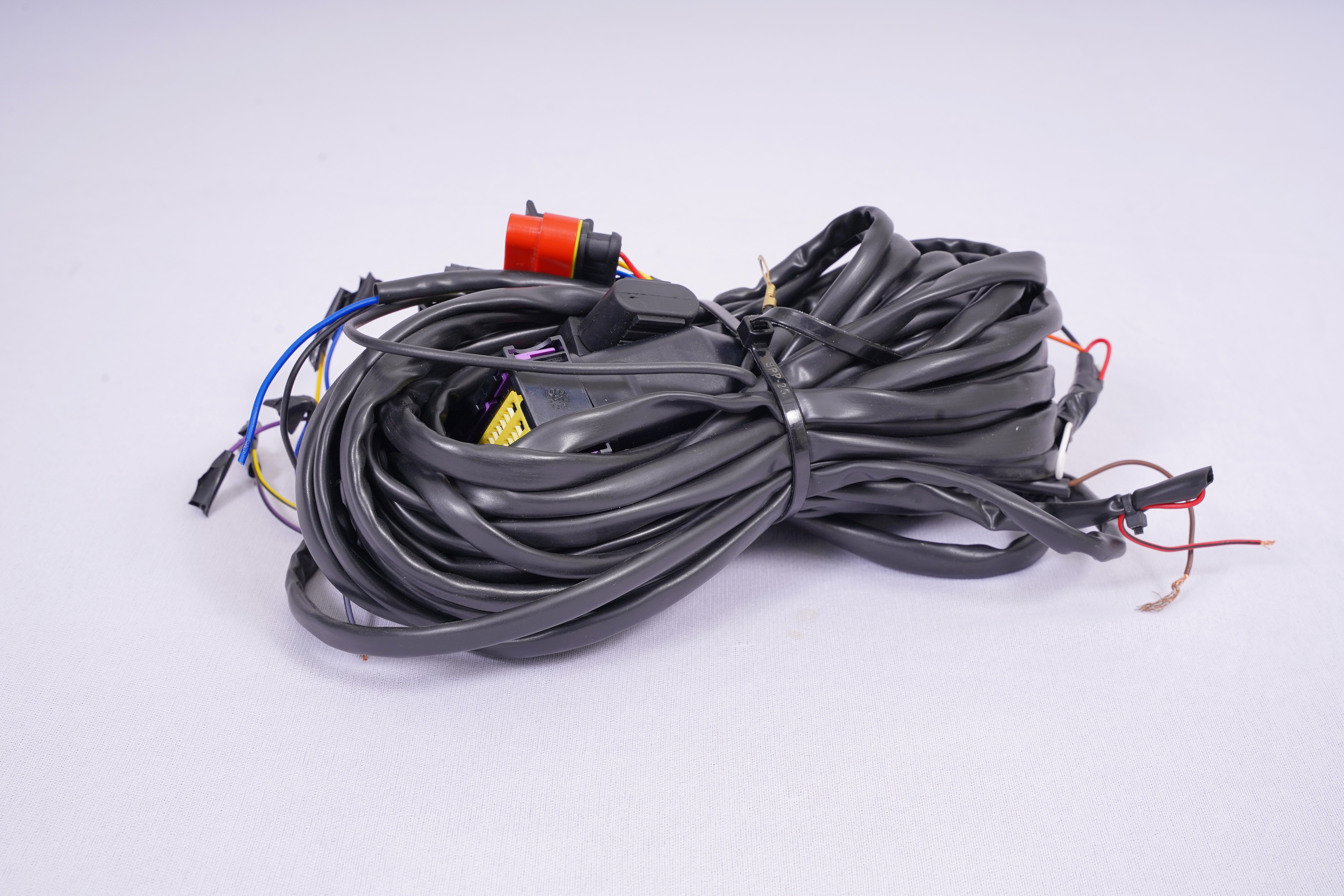

Wiring Harness

Multi-branch harness linking LPG ECU, injectors, sensors, and solenoid valves. Supports OBD interface, and onboard safety features. Heavy-duty, heat-resistant design with integrated fuses and relay protection.

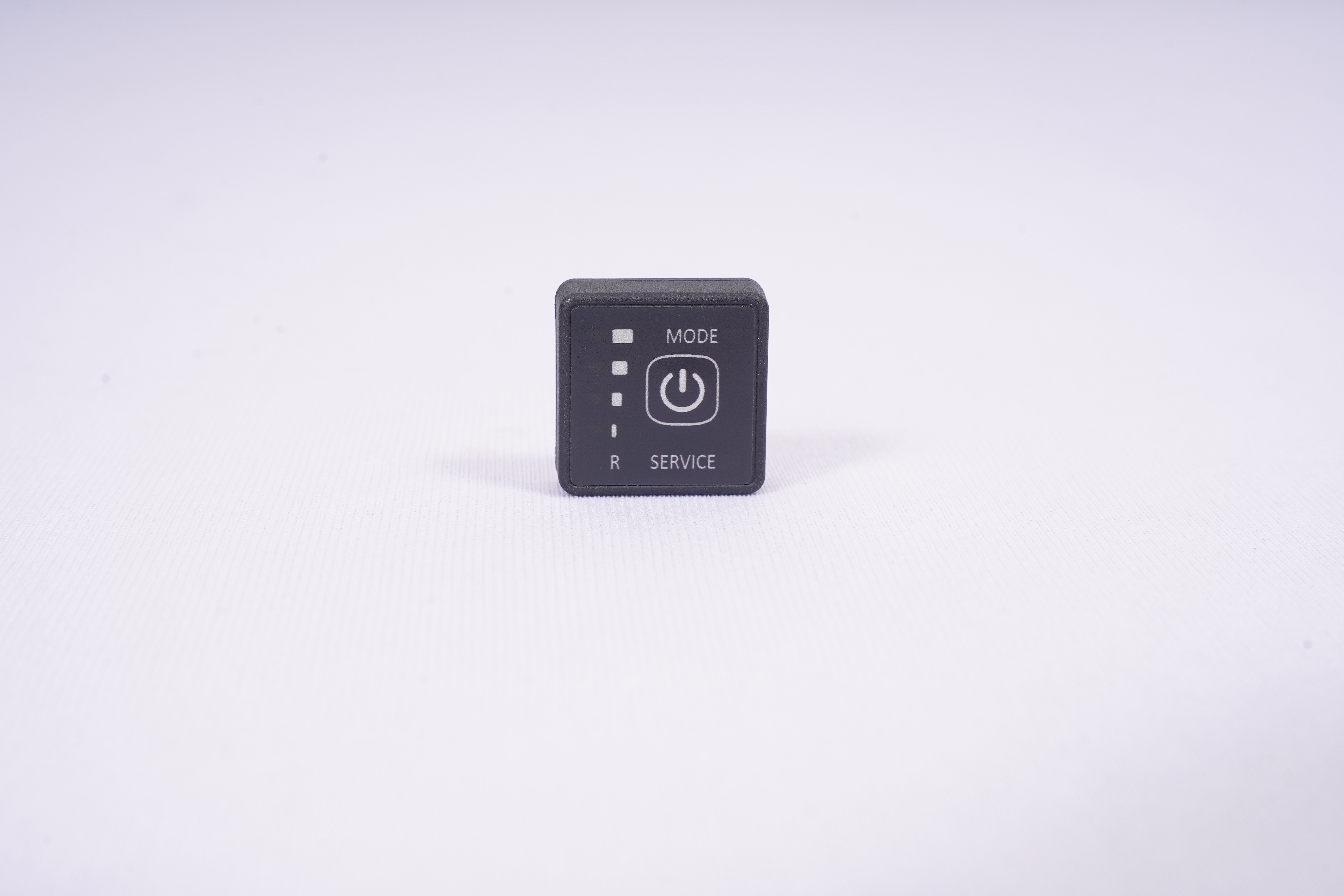

Switch

• This is another two-way switch helps in selction of fuel mode (Petrol/LPG) according to the selection.
• It is inbuilt with OBD error indication and service indication as well.
• The unique feature of this unit is the transfer of fuel mode into petrol automatically when gas pressure goes down below the set threshold.
• It further helps in direct gas start mode (Emergency Start) in case of trouble in starting petrol.
